Q120

No.SIE - Q120

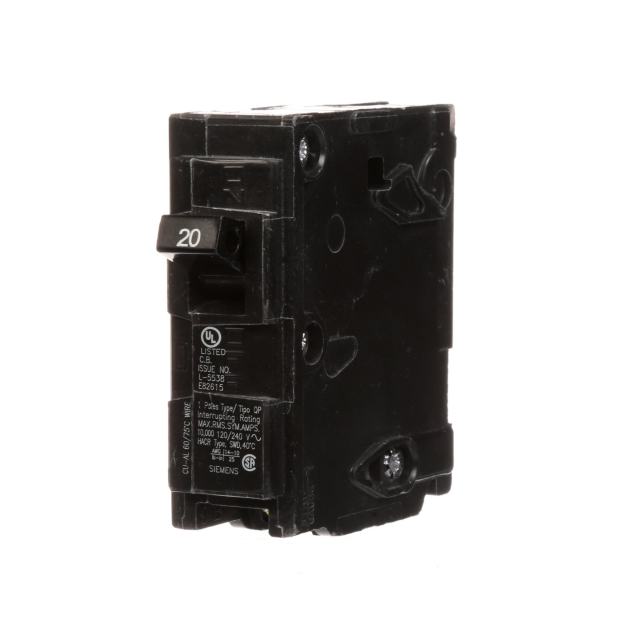

SIEMENS Q120 20Amp 1-Pole 120V 10kA Type Q Plug-In Breaker

SIEMENS logo

Brand Name
Siemens
Item Name
Circuit Breaker
Number of Poles
1
Amperage Rating
20 A
Terminal Connection
Plug-in
Frequency Rating
60 Hz
Frame
QP(125A)
Interrupt Rating
10 kA
Voltage Rating
120 VAC/VDC
Trip Range
Thermal Magnetic
Conductor Size
14-12AWG(CU)/12-10AWG(AL)

Description

Siemens Molded Case Circuit Breaker, 120 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, QP/MP Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Plug-In Connection, 14 to 12 AWG, 12 to 10 AWG Wire, NEMA 1/3R Enclosure, 40 deg C, 3 in L x 1 in W x 2.87 in H Dimensions
