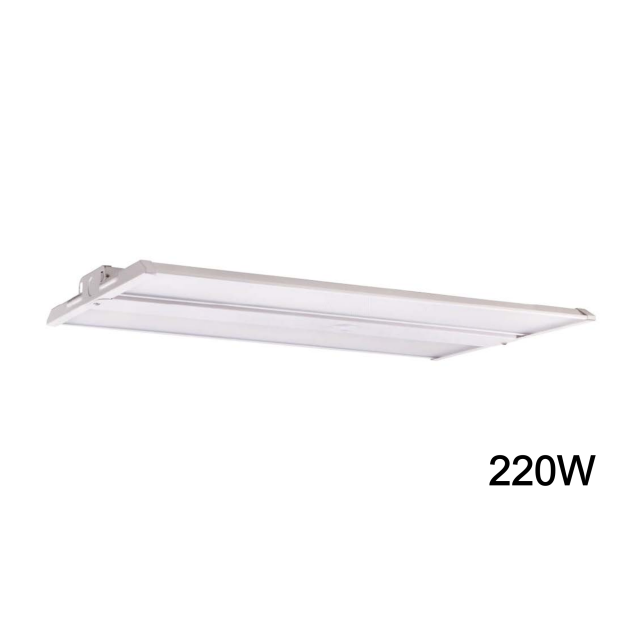

WS-LHB08-220W | 120-347V | 2CCT - LED Linear High Bay Light

No.WS-LHB08-220W-2C-3W

WEISS LIGHTING - LED LINEAR HIGH BAY LIGHT 120-347V 220W 2CCT 3WATT

Voltage Rating
120-347V, 50/60Hz
Color Temperature (CCT)
4000K/5000K Selectable
Wattage
180W-200W-220W Selectable
Lumens
140Lm/W, up to 30,800Lm
Dimming
0-10V
Color Rendering Index (CRI)
>80
Beam Angle
90°
Lamp Type
LED
Housing Material
Painted steel housing
Lens Type
Polycarbonate
Dimensions
24in L x 14-3/16in W x 1-9/16in H
Environment
Interior; dry and damp locations.
IP Rating
IP20
Average Life
~50,000 hours
Operating Temperature
-20°C~40°C (-4°F~104°F)
Mounting Type
Surface mount with chain-mount kit (included).
Accessories (Sold separately)
• Emergency backup battery • Microwave occupancy sensor • Wire guard
Standards
cULus Listed, DLC, IP65 rated

Description

The LED Linear High Bay Light is an economical combination of solid performance and quality construction. This product is ideally suited for use in mid- to high ceiling applications including industrial, warehouses, gymnasiums, and big box retail.

Documents  Specification
