WS-PG05-100W | 120-347V | 3CCT - LED Canopy Light

No.WS-PG05-100W

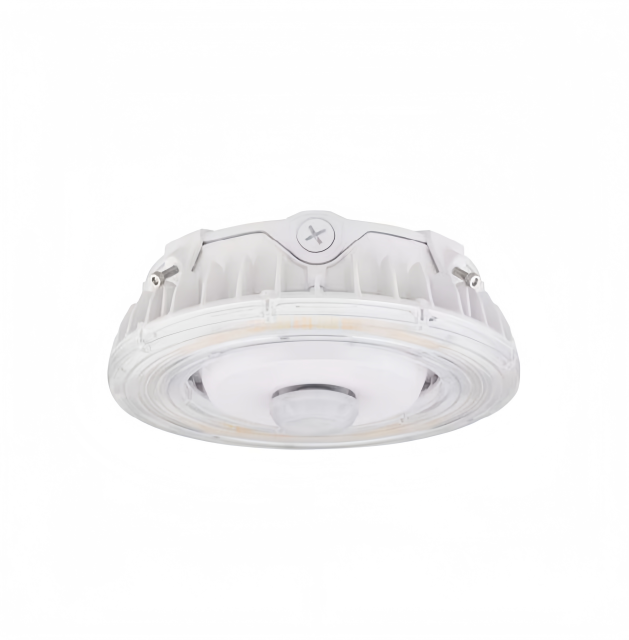

WEISS LIGHTING - LED CANOPY LIGHT 120-347V 100W 3CCT



Voltage Rating
120-347V, 50/60Hz
Color Temperature (CCT)
3000K/4000K/5000K Selectable
Wattage
75W-85W-100W Selectable
Lumens
156 lm/W
Dimming
0-10V
Color Rendering Index (CRI)
>80
Beam Angle
150°
Lamp Type
LED
Housing Material
Die-Cast Aluminum
Lens Type
Polycarbonate lens
Dimensions
H 3-1/8 in x Ø 11 in
Environment
Interior and exterior; dry, damp, and wet locations.
IP Rating
IP65
Average Life
~50,000 hours
Operating Temperature
-30°C~50°C (-22°F~122°F)
Mounting Type
Surface mount
Accessories (Sold separately)
• Emergency backup battery • Microwave occupancy sensor • PIR sensor
Standards
cULus Listed, DLC

Description

Garage and Canopy Round LED luminaire is exactly what you need when searching for durable, cost-effective lighting for parking garages, covered walkways and outdoor canopies. Compact and efficient, it has durable, weather tight construction and a rugged, UV-stabilized, frosted lens.

Documents  Specification
