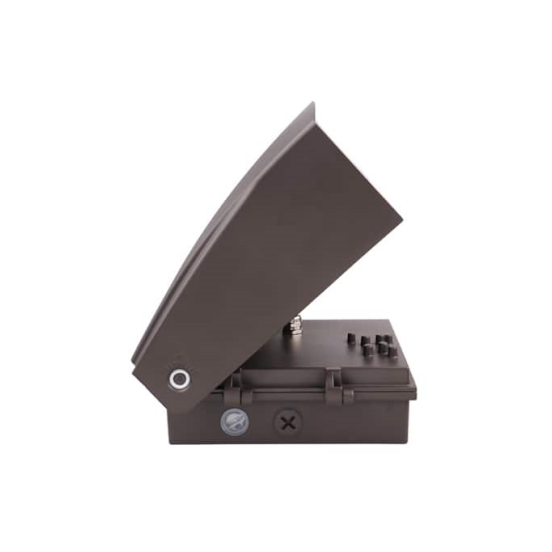

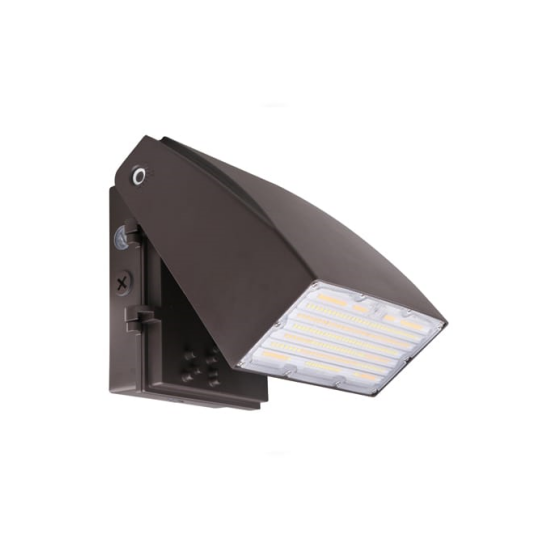

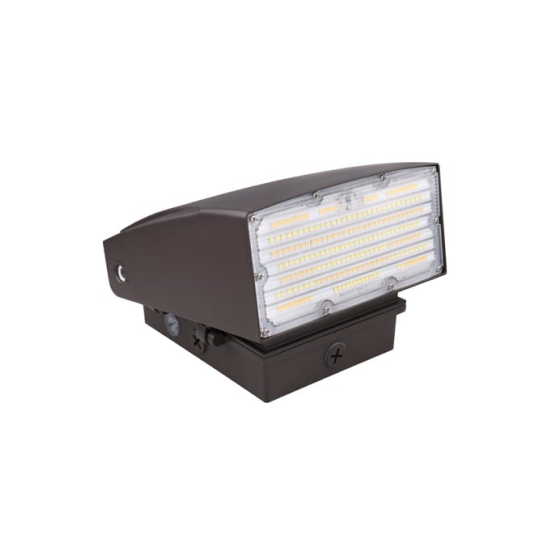

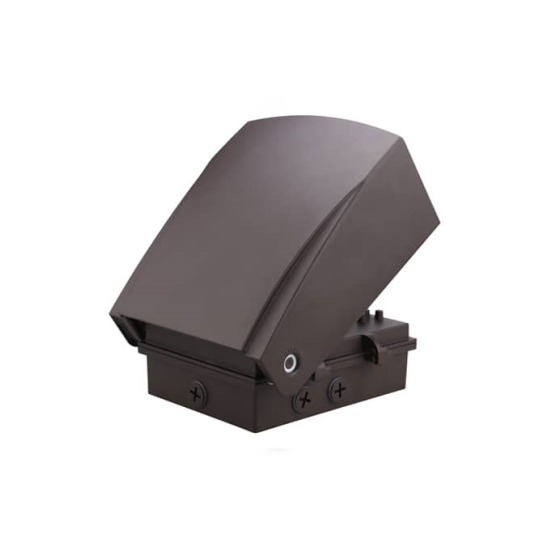

WS-AWP01B-80W | 120-347V | 3CCT - LED Slim Wall Pack Light

No.WS-AWP01B-80W

WEISS LIGHTING - LED SLIM WALL PACK LIGHT 120-347V 80W 3CCT



Voltage Rating
120-347V, 50/60Hz
Color Temperature (CCT)
3000K/4000K/5000K Selectable
Wattage
65W-70W-80W Selectable
Lumens
135 lm/W, up to 10,800Lm
Dimming
0-10V
Color Rendering Index (CRI)
>70
Beam Angle
90*110°
Lamp Type
LED
Housing Material
Die-Cast Aluminum
Lens Type
Polycarbonate lens
Dimensions
8.98 x 7.8 x 5.51"
Environment
Exterior; dry, damp, and wet locations.
IP Rating
IP65
Average Life
~50,000 hours
Operating Temperature
-40°C~50°C (-40°F~122°F)
Mounting Type
Wall mount
Standards
cULus Listed, DLC

Description

Adjustable Slim Wall Pack features a discreet design that will complement any building exterior. Two sizes are available, with three wattage and three CCT selectable options each.

Documents  Specification
